FLANGED COMPRESSED AIR FILTERS
Features
– Elements are assembled with a tie rod system
– Two external float drains for maximum drainage – Unique design for pre-separation zone
– Strong welded design
– CE and ASME tanks available
– Design for easy element change from top flange
External Float Drain
Mikropor external drain is designed to remove liquid condensation from collection points in a Compressed Air System.
Durable epoxy powder-coat finish and corrosion resistant internal anodised coating for longer service life.

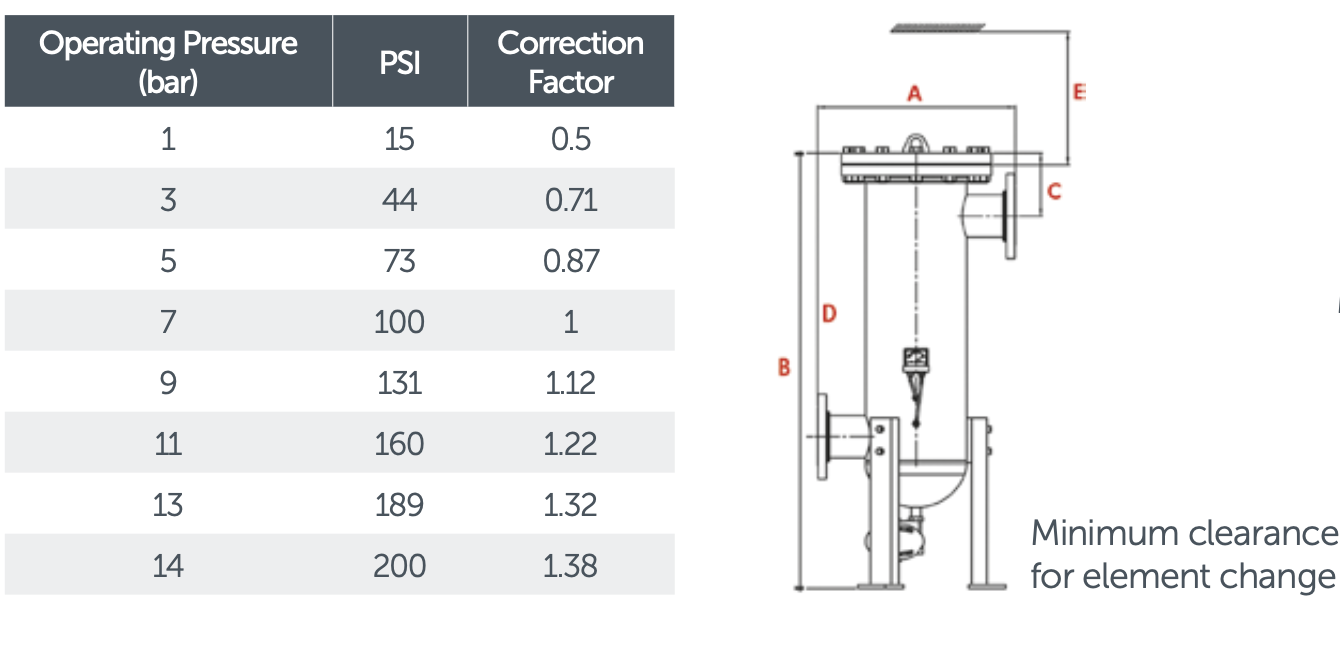

Correction Factor
For maximum flow rate, multiply model flow rate show in the above table by the correction factor corresponding to the working pressure.
