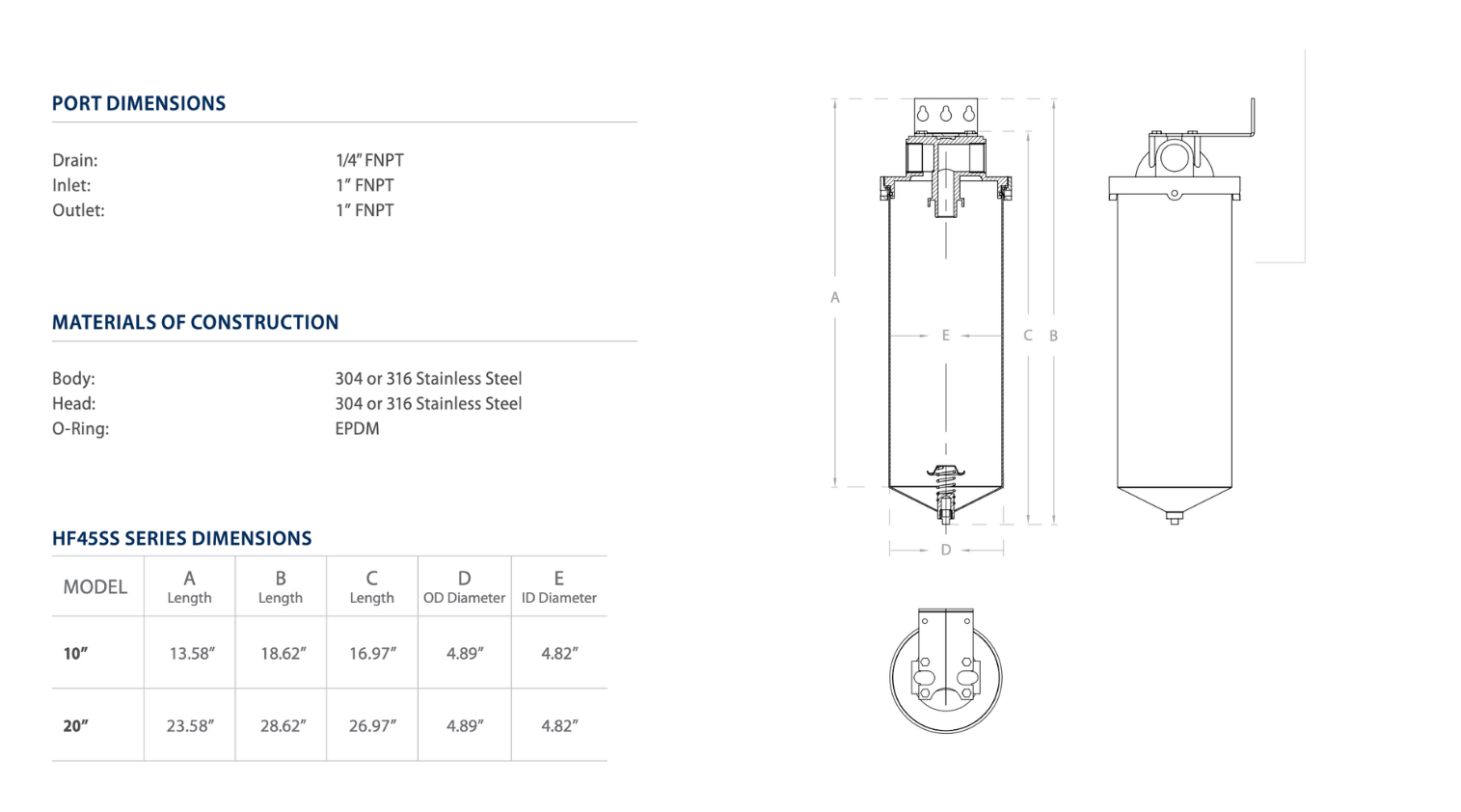

4.5” STAINLESS STEEL SINGLE ELEMENT FILTER HOUSINGS

Category Filtros para líquidos

APPLICATIONS	FEATURES
Chemicals Electronics Wastewater Potable Water Food & Beverage RO Prefiltration Plating Solutions Coolants / Inks / Paints / Coatings Photographic Solutions	Spring loaded Knife Edge Seal. Commercial and Industrial Filter Application. Ring Nut Closure for Quick Cartridge Change Outs. High Temperature and High-Pressure Applications. Heavy Duty 304 or 316 Stainless Steel Construction. Accepts 4 1/2” diameter (Big Blue style) Double Open-End (DOE) cartridges. 1/4” FNPT Drain Port Standard.

OPERATIONAL DATA

Max. Operating Temperature: 200 °F (93 °C)

Max. Working Pressure: 300 psi (20.68 bar)
