Filtros para líquidos

DELTA-PLUS FILTERS

Max. Operating Temperature: 180 °F (82 °C)

Descripción técnica

FEATURES	MATERIALS OF CONSTRUCTION
Absolute ratings from 1 to 100 microns. Surface pore structure extends water flow to reduce pressure drop. Thermally bonded end caps and connectors free of any binders. FDA / USP Material Safety Compliance – All materials comply with FDA requirements for food and beverage contact per CFR Title 21 174.5, 177.1520 and 177.1630. All components meet USP Class VI Plastics.	Filter Media: Polypropylene End Cap: Polypropylene O-Ring / Gasket: EPDM – (Buna-N, Viton, Silicone and Viton Encapsulado PFA options)

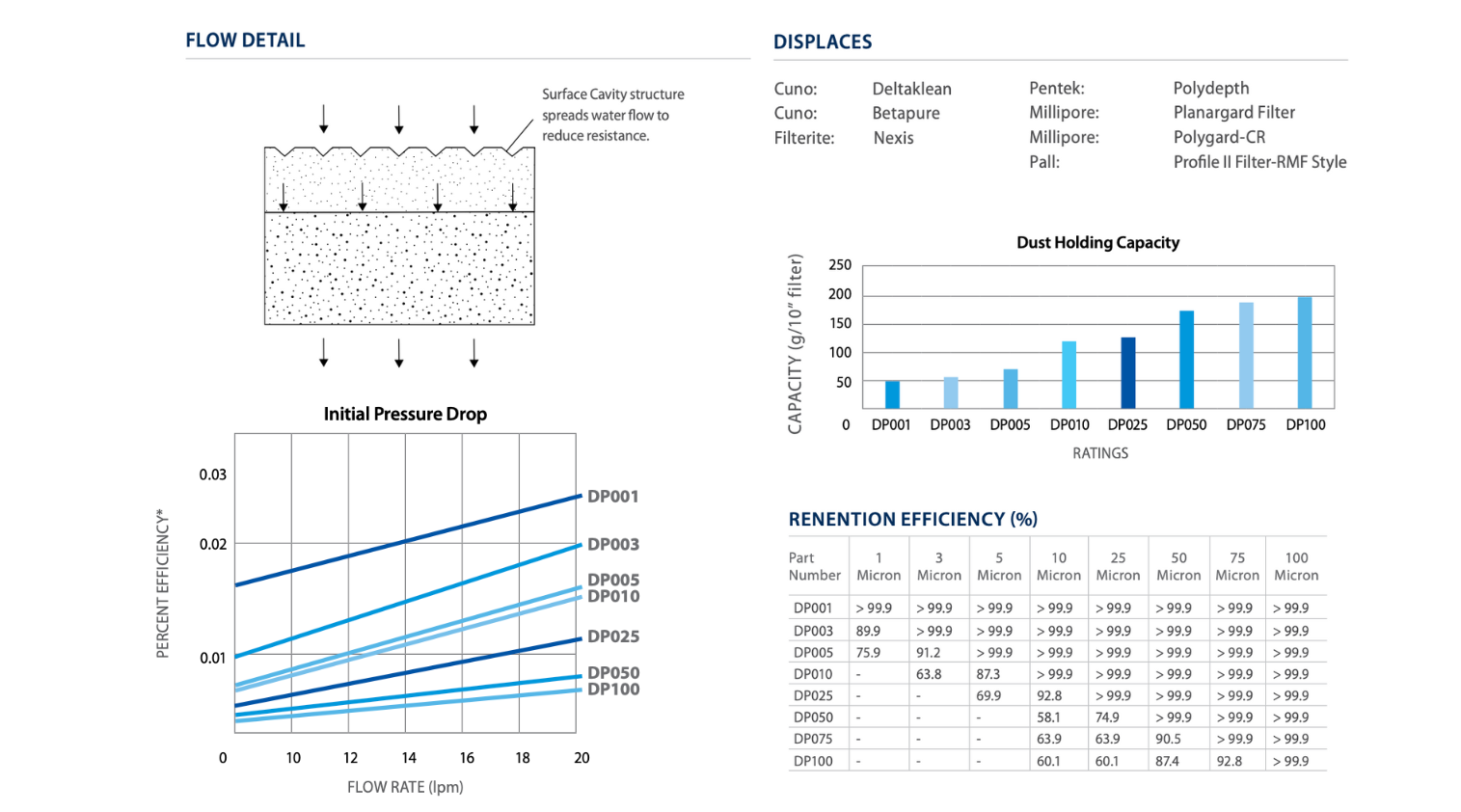

OPERATIONAL DATA

Max. Operating Temperature: 180 °F (82 °C)

Max. Pressure Drop:

100°F at 80 psi – 37°C at 5.6 kg/cm2

150°F at 60 psi – 65°C at 4.2 kg/cm2

180°F at 30 psi – 82°C at 2.1 kg/cm2

Relacionados

Cuéntanos tu aplicación, caudal y norma. Un especialista te responde con una propuesta técnica.
