KÄFERFILT

Filtros para líquidos

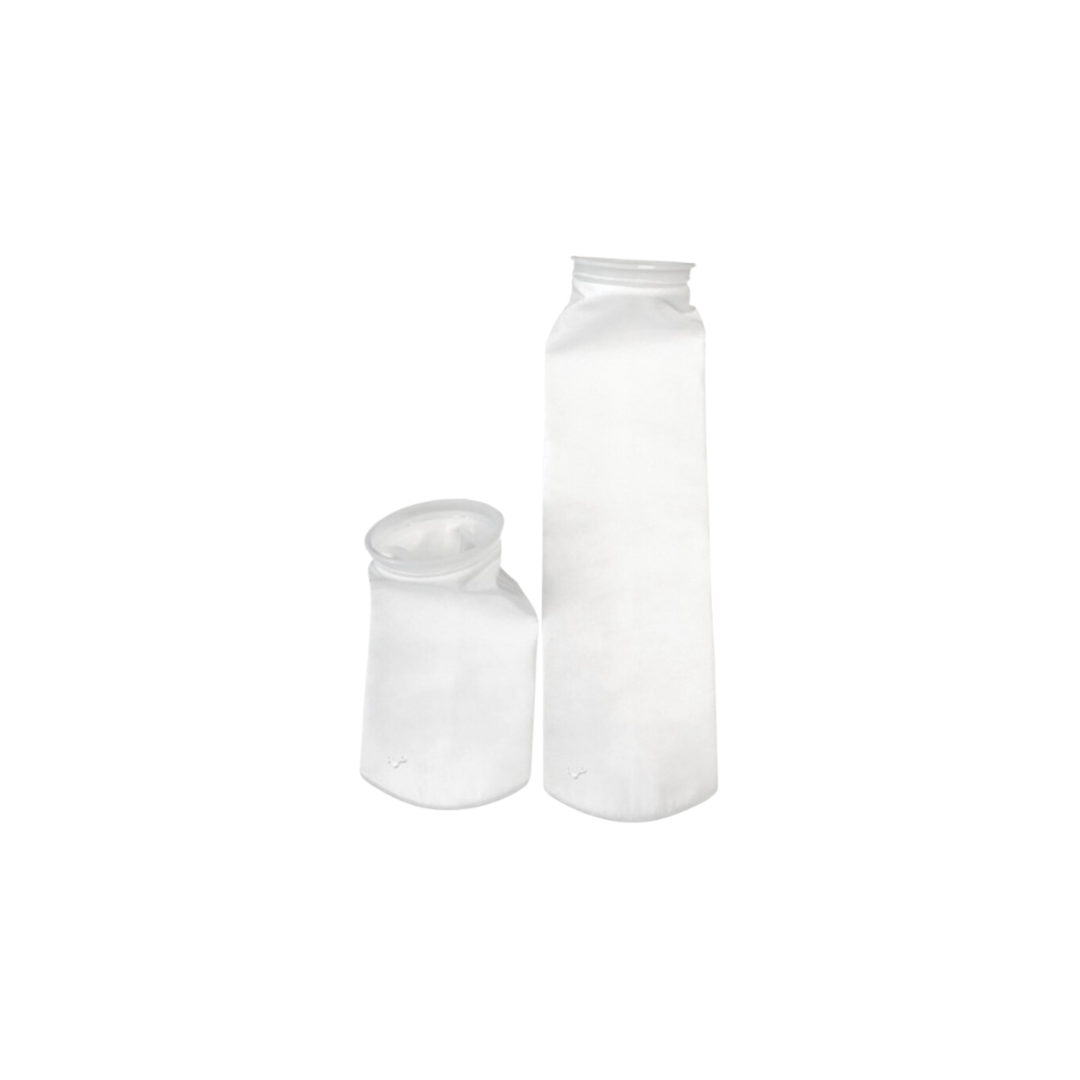

POLYPROPYLENE FILTER BAG

POLYPROPYLENE FILTER BAG
Filtros para líquidos

Max. Operating Temperature: 195ºF @ 20 psi (90ºC @ 2.4 bar)

Cotizar por WhatsApp → Solicitar cotización
Precio
Sobre cotización

Descripción técnica

FEATURES APPLICATIONS
  • Micron Ratings from 1 to 200 microns.
  • Durable Polypropylene Felt Standard #1 and #2 Bags.
  • Designed to fit most manufacturers housings.
  • Polypropylene ring with handle for easy removal.
  • High Particle Retention.
  • Superb Solids-Loading capacity.
  • FDA / USP Material Safety Compliance – All materials comply with FDA requirements for food and beverage contact per CFR Title 21 174.5, 177.1520 and 177.1630. All components meet USP Class VI Plastics.
  • Process Water
  • Water and Wastewater
  • Prefiltration
  • Beverages
  • Lubricants
  • Paints / Inks
  • Chemicals
  • Coatings

OPERATIONAL DATA

Max. Operating Temperature: 195ºF @ 20 psi (90ºC @ 2.4 bar)

Max. Flow Rate: Bag1 2o m3/hr (88 gal/min), Bag2 40 m3/hr (176 gal/min)


See more details
